Great Unconformity –Grand Canyon, Arizona

So just like intrusive igneous rocks, metamorphic rocks require great lengths of time to accomplish the uplift and erosion in order to be exposed at Earth’s surface.

So what do we make of this photograph?  It shows a sequence of sandstone, shale, and limestone sitting on top metamorphic rock (called the “Vishnu Schist”) in the Grand Canyon.  The sandstone was deposited right on top the schist.

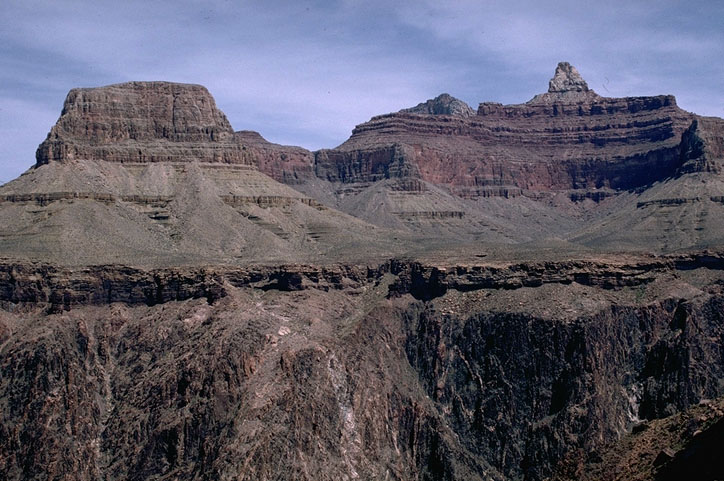

Great unconformity, Grand Canyon, Arizona

Sequence of Cambrian sandstone (the ledge across the middle of the photo), shale (the overlying slopes) and limestone (the upper cliffs) deposited on top the Vishnu Schist in the Grand Canyon.



Since sedimentary rocks, like sandstone, shale, or limestone, are deposited at Earth’s surface –and metamorphic rock forms beneath the surface, this photo shows that BEFORE the sedimentary rocks were deposited, the metamorphic rock (schist) had to have been uplifted and exposed.  So all the time required to bring the schist to the surface had to take place before the sandstone was even deposited.

The surface of contact between the sandstone and the schist is called an unconformity because it is here that we see evidence for a great deal of missing rock record.  The sandstone must be much younger than the schist –for the very reason that the schist first had to get uplifted and exposed at the surface before the sandstone was deposited on top of it.  So… because the sandstone is so much younger, but it was deposited right on top the schist, there must be a gap in the rock record between them … an unconformity.

And here is where we see evidence for even LONGER periods of time.  Overlying the sandstone?  Thousands and thousands of feet of more sedimentary rock.  And much of that sedimentary rock was marine… formed at sea level.  It is now over a mile above sea level.

And the schist itself?  The people who’ve studied it have determined that much of it was originally volcanic –which means that it originally formed at the Earth’s surface.  So… over geologic time, it must have been buried to the depths needed to turn it into a metamorphic rock BEFORE it was uplifted and exposed.

So… how old is Earth?  Some say 6 or 10,000 years… I think we’re looking at 10s of millions in this photo.  And if we consider the numerical ages for these rocks, 1.7 billion is the age of metamorphism of the schist –its original volcanic rock must have been older!

Posted in Geologic Time, Geology, photography and tagged , , , , , , , , , , , , , , , , , ,
30 Mar 2012
6 Comments

Metamorphic Rock

Metamorphic rock, just its very existence at Earth’s surface, signifies great lengths of geologic time –on the order of millions of years.

Consider this rock, high in the Teton Range of Wyoming.

Folded gneiss, formed at depths of 10 km or more, high in the Teton Range of Wyoming.

This is a metamorphic rock called gneiss –in a lot of ways, it’s like granite, because it contains a lot of the same minerals –but gneiss forms because an older rock (in this case, probably a granite) was heated to high enough temperatures that its minerals recrystallized into new minerals.  And most metamorphism also involves high pressures, so all the new crystals form in a particular arrangement (as opposed to granite, in which the crystals are randomly arranged) –that’s how the layering (called “foliation”) forms in metamorphic rocks: the recyrstallization of new minerals under pressure.

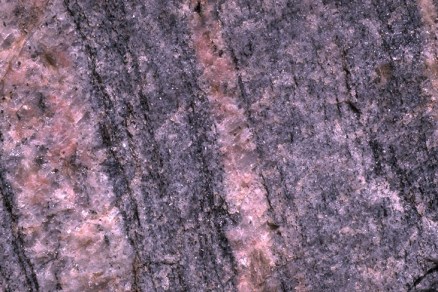

Close-up view of gneiss, showing crystals that formed in the same orientation, as a result of recrystallization while under directed pressure. The layering is called "foliation"

But the key thing here, is that metamorphic rocks form WITHIN the Earth, at depth –and just like granite, require uplift and erosion to get to the surface.  This gneiss formed at depths of 10 km or more and was then uplifted to its present elevation, nearly 4 km above sea level.  –which requires time.

click here to see more photos of metamorphic rocks
click here to see a geologic map of Grand Teton National Park, Wyoming.

Posted in Geologic Time, Geology, mountains, photography and tagged , , , , , , , , , , , , , , ,
28 Mar 2012
1 Comment

Cambrian rock

–the last posting, (March 21) had a photo of granite of the Cretaceous Sierra Nevada Batholith intruding Cambrian sedimentary (now metamorphosed) rocks.  These photos show more Cambrian rock.  The Cambrian Period (542-488 million years ago) is the bottom of the Phanerozoic Eon –and one reason Cambrian rocks are significant, is that they are the oldest rocks to contain shelly fossils.  Older rocks, called “Precambrian” may contain fossil impressions or fossilized algae, but don’t contain any shells.

At the risk of being too repetitive (see post March 13) the upper photo shows Cambrian limestone in the Death Valley region –there are thousands of feet of Cambrian Limestone in the Death Valley region.   The lower photo shows Cambrian sandstone, shale, and limestone overlying tilted Precambrian sedimentary rock in the Grand Canyon.

My point is that the Cambrian section is traceable over great distances.  That’s important, because the base of the Cambrian provides a common datum over much of the western US –certainly from the Sierra Nevada to Death Valley to the Grand Canyon –but in later posts, you can see that it’s also in Colorado, Wyoming, Montana… and so on!

Cambrian limestone in the Nopah Range, SE Californi

Thousands of feet of marine limestone make up many of the mountain ranges in the Death Valley area of SE California. Click here to see a geologic map of Death Valley National Park...

The photo above shows the Cambrian Bonanza King Formation (gray) on top the Cambrian Carrara Fm (orange).

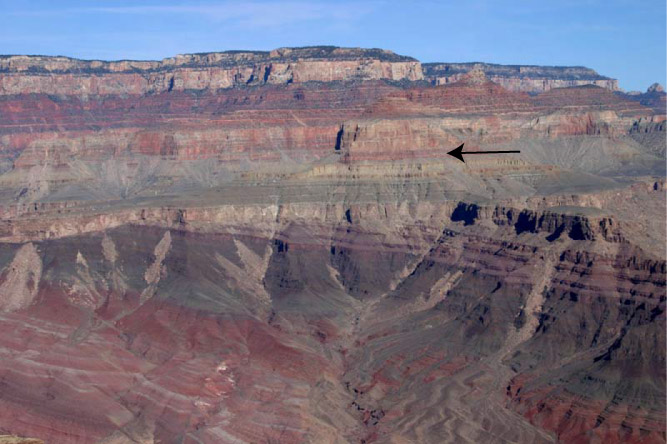

And the photo below shows the near-horizontal Cambrian and younger rocks of the Grand Canyon over tilted Precambrian sedimentary rock.  It’s really thin here… the Cambrian only goes up through the arrow.

Posted in Geologic Time, Geology, mountains, photography and tagged , , , , , , , , , , , , , ,
21 Mar 2012
1 Comment

Cretaceous batholiths and roof pendants

The photos from the last posting were from the Sierra Nevada Batholith –called a “batholith” because it consists of many many smaller intrusive bodies that collectively define a much larger intrusive complex that doesn’t even have a well-defined root.  As it turns out, the Sierra Nevada are one of several really large batholiths that intruded the crust of the Pacific Margin during the Cretaceous Period, about 80-100 million years ago.

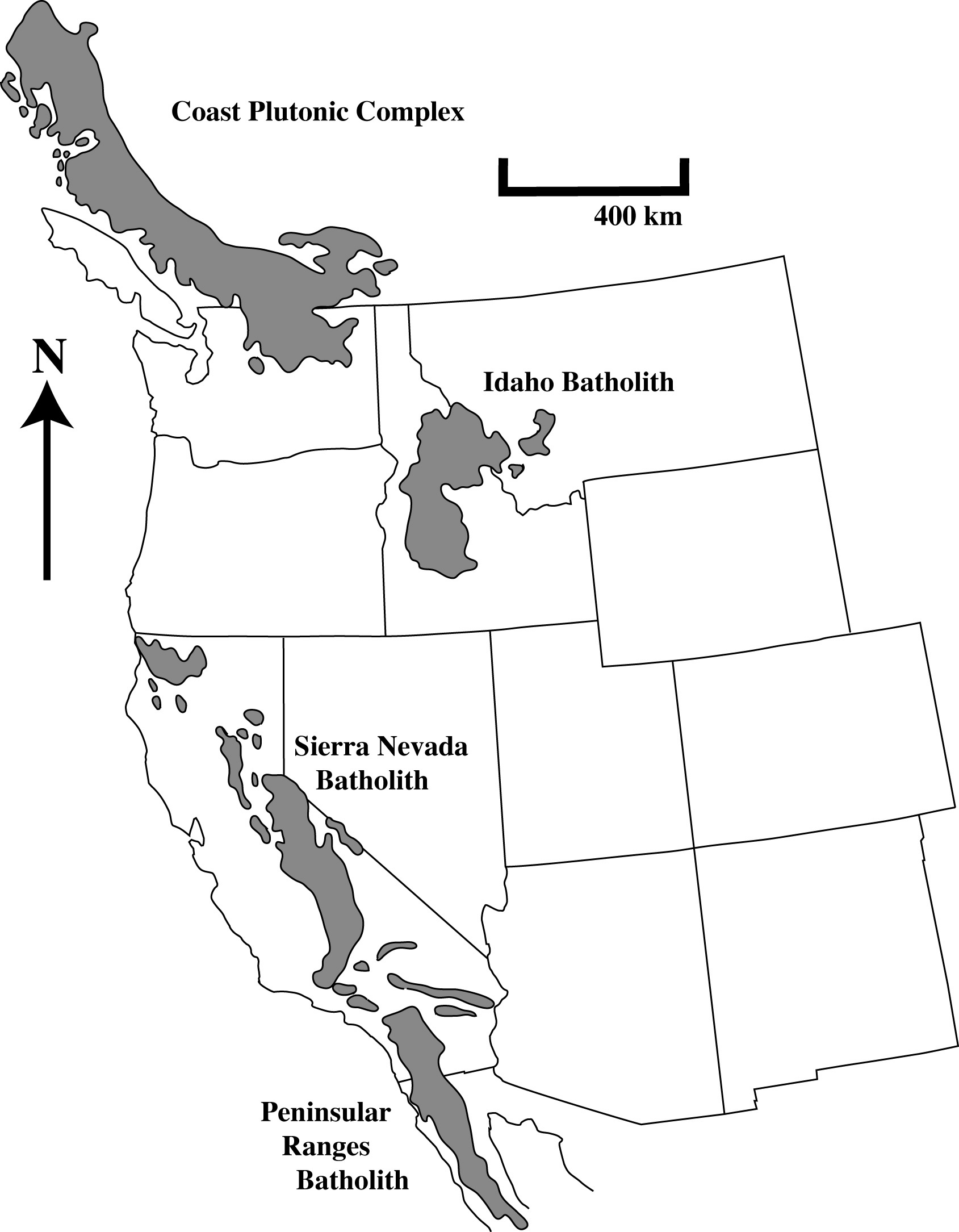

Granitic Batholiths of Cretaceous age in western North America.

And along the east side of the Sierra Nevada, we can see the original rock into which the granite of the Sierra Nevada intruded.  This original rock consists of older sedimentary and volcanic rock–that dates from the Cambrian Period through the Jurassic– much of which was metamorphosed by the heat from the intruding granite.  The photo below shows the Cretaceous granite below (light colored rock) and the dark-colored sedimentary (now metamorphic) rock above.  These older rocks that are intruded by the granite are called “roof pendants” because they show the roof of the batholith.

Cretaceous granite intruding Cambrian metasedimentary rock, Sierra Nevada Range.

And as far as geologic time goes, this photo shows us that the granite, discussed in previous posts, is younger than the sedimentary rock that overlies it.

And click here to see a photo of glaciated granite in Yosemite National Park.



Posted in Geologic Time, Geology, mountains, photography and tagged , , , , , , , , , , , , ,
15 Mar 2012
1 Comment

Granite

That’s actually the moon at the end of the crack in this rock…

granite and moon, Sierra Nevada, California.

A typical exposure of granite --coarse grained with an interlocking, random assortment of crystals. Click here to search for geology pictures by keyword.

And the rock is a pretty typical example of granodiorite… which is a lot like granite, except it has a little less silica.  See yesterday’s post about igneous rocks if you’re interested.

It turns out that most of the Sierra Nevada Range in California, including Mt. Whitney (the conterminous US’s highest peak) is made out of granodiorite.  And if you consider that most of the magma cooled and crystallized at a depth of 10km, and now resides about 4km ABOVE sea level, we’re looking at millions of years to accomplish this uplift.

Here’s Mt. Whitney at sunrise… It’s the peak just left-of center.  From this view, you can see that the rock of this part of the Sierra Nevada Range is all pretty much the same: granodiorite.

Mt. Whitney and Sierra Nevada, California at sunrise. Mt. Whitney's elevation is 14, 505' above sea level, the highest spot in the conterminous US. The rock in this photograph is almost entirely granodiorite.

Posted in Geologic Time, Geology, mountains, photography and tagged , , , , , , , , ,
14 Mar 2012
2 Comments

Igneous Rocks

Here are some samples of different igneous rocks.  The upper photo shows intrusive igneous rocks and the lower photo shows volcanic (extrusive igneous) rocks.

From left to right, these rocks are arranged in order of decreasing silica content: granite, diorite, and gabbro. Click here for more photos of igneous rocks and features.

I can’t claim that these are the most artistic photos, but they do show a couple things about igneous rocks.  First off, to be igneous, a rock needs to have cooled and crystallized from a molten state.   Intrusive rocks, shown in the photo above, are the type of igneous rock that cools and crystallizes within the crust; volcanic rocks, shown in the photo below, cool and crystallize on the Earth’s surface.  Because they form by cooling and crystallizing, crystals in both types  generally have a random orientation and an interlocking texture.  You can see that in the photo above, because intrusive rocks tend to be coarse grained.  It’s much harder to see that feature in volcanic rocks because they tend to be fine grained.

Intrusive igneous rocks are coarse-grained, and volcanic rocks are fine-grained because it takes time to grow crystals –and intrusive rocks take longer to cool and crystallize because they’re insulated by the surrounding rock.

These photos also demonstrate how igneous rocks generally become lighter in color as their silica content increases and their iron content decreases.  By definition, granite (left photo) has more silica than diorite, which has more silica than gabbro.  Iron tends to follow silica in an inversely proportional sort of way –so the gabbro has the most iron.  Same thing with the volcanic rocks.

When it comes to great lengths of geologic time, the intrusive rocks are the most instructive.  They form within the Earth– at depths of several kilometers to several tens of kilometers –but here are some hand samples at the surface?

So the big question is, how long does it take for a rock at a depth of say, 10 km, to make it to the surface of the Earth?  It depends on the rate of uplift and erosion –but really fast uplift rates are on the order of 1 meter/thousand years.  That makes for 10 million years at minimum just to get these little hand samples to the surface!

From left to right, these rocks are arranged in order of decreasing silica content: rhyolite, andesite, basalt. Click here for more photos of volcanic rocks and features.

Posted in Geology, Geologic Time and tagged , , , , , , , , ,
13 Mar 2012
2 Comments

Cambrian Limestone, Death Valley National Park, California.

Limestone’s a common sedimentary rock –it’s made from calcium carbonate.  The calcium carbonate is precipitated in shallow marine conditions with the help of biological activity, most commonly algae, but also by the many invertebrates that form shells.  This material then settles to the ocean bottom as a lime-rich mud and if the conditions are right, eventually becomes rock.

Compared with many other sedimentary rocks, limestone deposits can accumulate pretty rapidly –about 1 meter per thousand years in many cases –and even two or three times that under optimal circumstances.  These rates are for uncompacted sediment, and a great deal of compaction occurs as the sediment turns into rock.  Additionally, if the deposit is to accumulate to any significant thickness, the crust on which it is deposited must also subside.

Thousands of feet of limestone, deposited during the Cambrian Period, are exposed in the Death Valley region. Click here for a slideshow of Death Valley geology



So all this limestone in Death Valley was deposited as a bunch of horizontal layers in a shallow marine setting –not too deep, or light wouldn’t penetrate to the seafloor to allow photosynthesis –key to the ecosystem that produced the calcium carbonate in the first place.  And since it was deposited, it’s been uplifted and tilted and eroded.

Posted in Geology, Geologic Time, Uncategorized and tagged , , , , , , , , ,
12 Mar 2012
1 Comment

It’s about time

It’s about time that I started a blog.  Geology and Geologic time are so visual–they lend themselves beautifully to photography.  And those are things that I feel very passionately about.  So that’s what I plan to do here… post the occasional photo of something geological and discuss geologic time.

Why is an understanding of geologic time important?  Briefly, it’s important because it gives us perspective on resources, environmental degradation, and perhaps most important, what it means to be human.  Resources form at geologic rates, but we humans use them at human rates.  Similarly, environmental degradation will eventually heal… at geologic rates –but we cause the degradation at human rates.  And with respect to our humanity?  Seems to me that to realize human beings have been around for only a tiny fraction of Earth History naturally gives us some humility –something we could all probably use.

I plan to take a visual approach to geologic time… through photographs.  There’s no need to discuss radiometric dating, because one doesn’t radiometric dating to show that the Earth is inconceivably old.  You only need to think about the processes involved in forming a geologic feature and an open mind.  Many of these photos come from my website: marlimillerphoto.com –you can download over a thousand geology images from there for free.

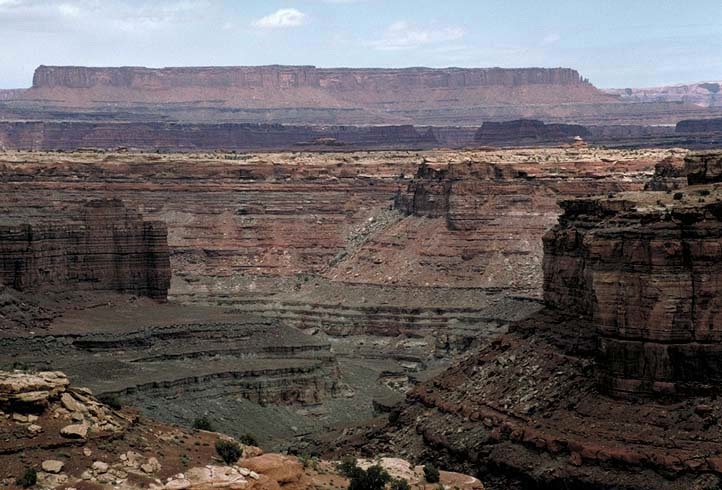

Thousands of feet of sedimentary rock, exposed in the canyons of SE Utah, attest to great lengths of geologic time. This particular canyon is in the Needles District of Canyonlands National Park.

So when you look down a canyon, like the one in this photo, you’re looking at unmistakeable evidence for great lengths of time… it’s not that the canyon itself took so long to form (maybe 100’s of thousands of years?  More?  Less?), but the rock itself, made of layer upon layer of sediment, deposited in different environments —That’s where we can get a glimpse of geologic time.

More later… thanks for looking!
–Marli
